XEEN Anamorphic

2x Anamorphic lens for high-end digital cinematography
Covers full-frame sensor
Compatible with PL mount

  • 50mm T2.3

Compatible with Full-Frame Sensor

Compatible with full-frame PL mount cameras.  It offers excellent quality, high resolution, and excellent sharpness.  It's suitable for 4K or UHD as well as 8K resolution cameras.

2X Anamorphic :
Magnificent
& Highly Immersive

After being de-squeezed, the XEEN Anamorphic 50mm T2.3 lens covers a 2.55:1 original cinematic cope ratio in a 35mm full-frame sensor in order to provide old films' own vintage look and a wider field of view and more attractive images from a horizontal angle of view.

Carbon Fiber

By applying carbon fiber, which is lighter than metal but solid and beautiful, to the lens body tube, it remains lightweight while maintaining durability.

Outstanding
Usability

Designed to 114mm standard front diameter size it is easily compatible with 4x5 Matte Box.
All scales, including focal length and aperture values, are on both sides of the lens and with the luminous font that glows in the dark, enabling convenient verification and operation, even in low light environments.
300 ° wide focus gear rotation angle makes you adjust focus minutely.

Luminous

1

1. Squeeze Factor 2x

After being de-squeezed, the XEEN Anamorphic lens covers 2.55:1 original cinematic cope ratio in 35mm full-frame sensor, providing a wider field of view and old films' own vintage look

2

2. 15 Aperture Blades

The newly developed iris with 15 aperture blades, creates perfectly oval and evenly illuminated out-of-focus highlights

3

3. Compatible with Full Frame Sensor

Compatible with the latest PL mount cameras
that adopt Full Frame sensor

4

4. Carbon Fiber

Carbon fiber is applied to part of the body tube, making it both light and durable with a sense of luxury

5

5. Ø114 Front Size

The XEEN Anamorphic features a Ø114mm, non-rotating front diameter, which is ideal for use with a 4x5 Matte Box

6

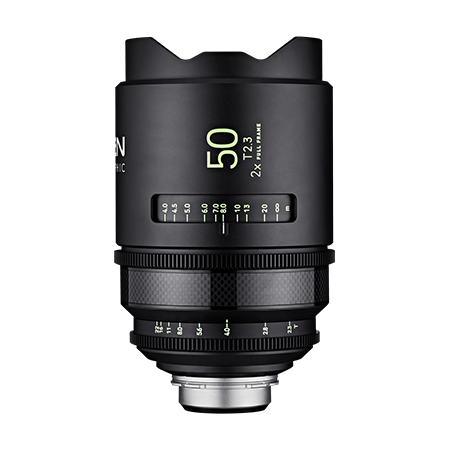

6. Luminous Font

All scales, including focal length and aperture values,
are treated with bright fluorescent paint for convenient use,
even in low light environments

7

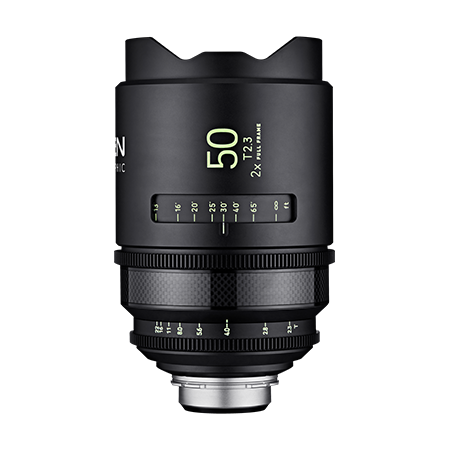

7. Bidirectional Scale

The focus and aperture values are displayed on both sides of the lens, enabling easy verification and operation from either side

8

8. Wide Focus Gear Rotation Angle

300 ° wide angle of rotation enables fine focus adjustment

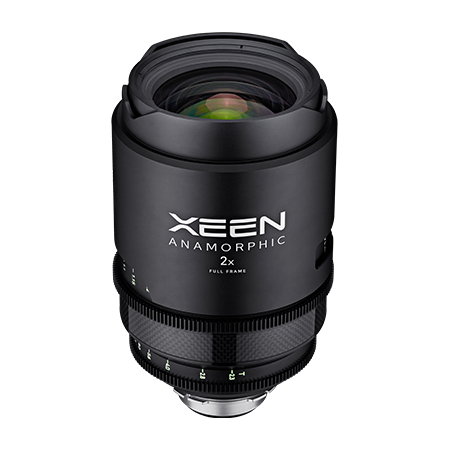

XEEN Anamorphic 50mm T2.3 Front

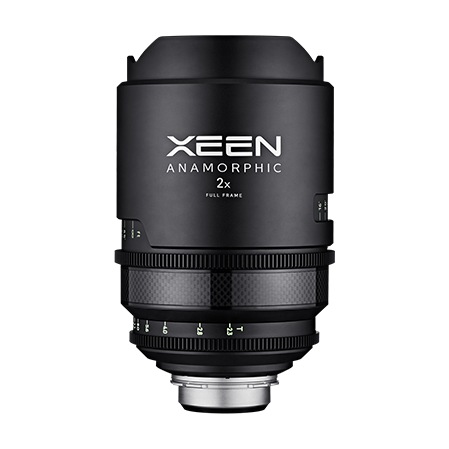

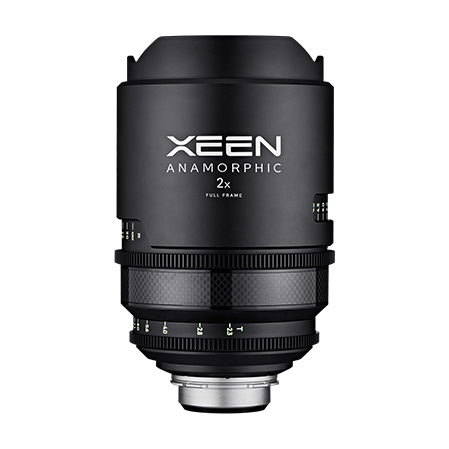

XEEN Anamorphic 50mm T2.3 Side

XEEN Anamorphic 50mm T2.3 Top

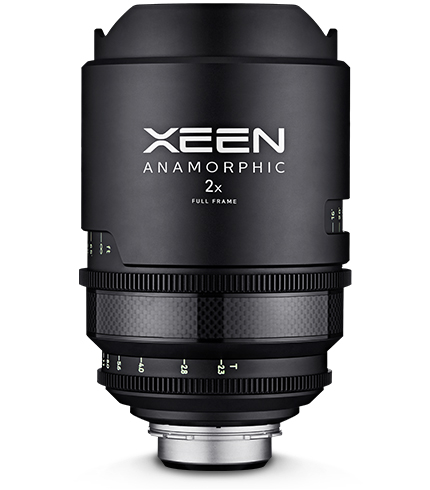

XEEN Anamorphic 50mm T2.3

XEEN ANAMORPHIC SPECIFICATIONS

XEEN Anamorphic Specifications
Model Name XEEN Anamorphic 50mm T2.3
Maximum T-stop T2.3
Image Circle Ø 43.2mm
Angle of View Full Frame H:68.4˚ V:26.9˚
Super 35 H:50.0˚ V:20.5˚
Focusing Range ∞ to 1.0 m
∞ to 3.3 ft
Front Diameter Ø 114 mm
Number of Aperture Blades 15
Rotation Angle of Focus Ring 300°
Rotation Angle of Aperture Ring 89.5°

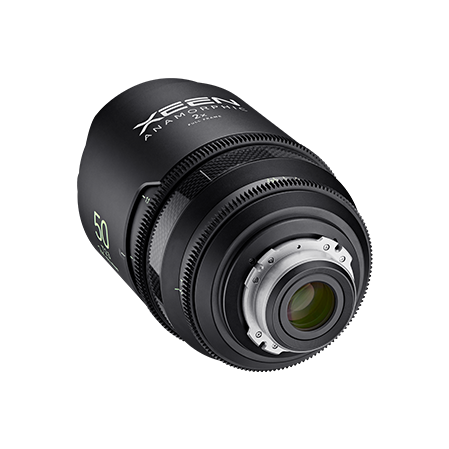

Mount PL
Size Ø128.0 x 198.6 mm
Weight (without Lens cap) 3.9 kg / 8.50 lb
Squeeze Ratio X2
Focus Drive Gear 158 teeth 0.8 metric module x 8.0mm wide x 121mm from the image plane
Iris Drive Gear 136 teeth 0.8 metric module x 7.0mm wide x 75mm from image plane
